Overview

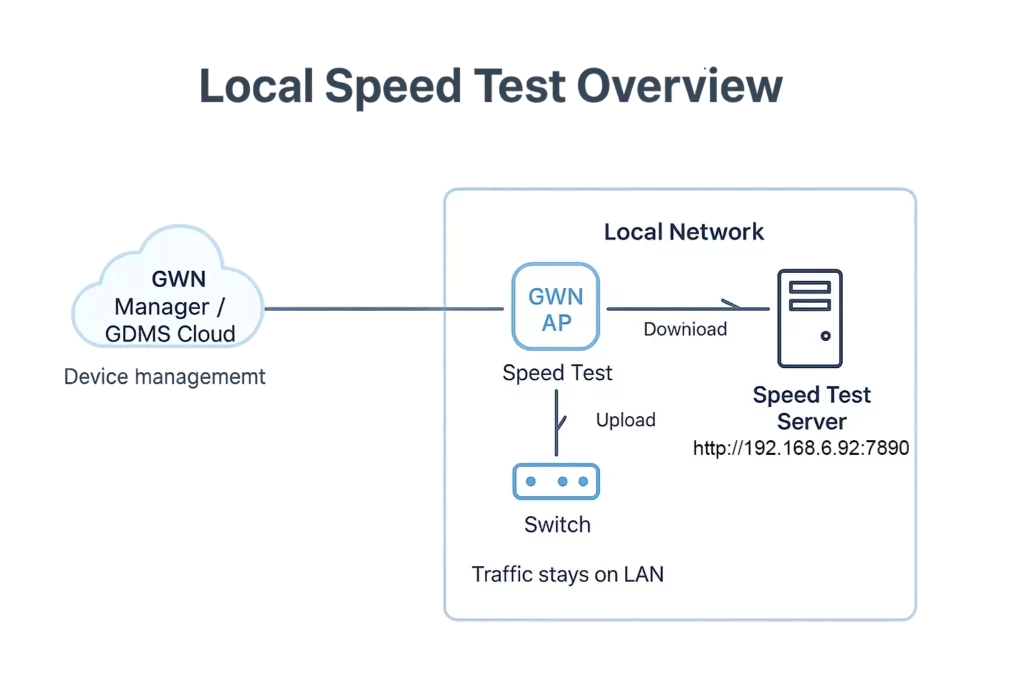

This guide shows how to deploy a local GWN Speed Test Server on Linux and register it in GDMS Networking or GWN Manager. Testing against a local target keeps traffic on your network, avoids internet bottlenecks, and provides consistent, reproducible results for troubleshooting and capacity checks. We’ll walk through the GUI steps and include copy-paste commands for Ubuntu and CentOS.

Note: The platforms also offer public test servers; this document focuses on the local option for controlled testing.

Prerequisites

To follow this guide, have the following ready:

• Platform access: A GDMS Networking or GWN Manager account with rights to add a Speed Test Server (Organization → Global).
• One managed device: At least one device such as a GWN access point adopted in GWN Manager or added to GDMS Networking to run the test.
• Linux host for the server: Ubuntu or CentOS machine (physical or VM).
• Static IP recommended: Assign a fixed address to the host so the server URL remains stable.
• Network mode: If using a VM, use Bridged (or equivalent) so devices can reach the server IP directly.
• Admin privileges: sudo access on the Linux host.
• Download: Speed Test package from the Grandstream Tools page: https://www.grandstream.com/support/tools
• Example URL used in this guide: http://192.168.6.92:7890 (replace with your server’s IP).

Speed Test Server Installation

Docker Installation

Install Docker on the Linux host so the speed test package can deploy its service.

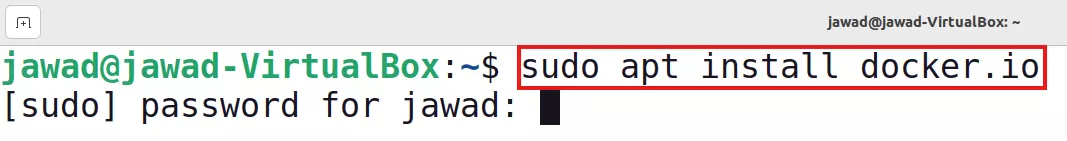

• Ubuntu (22.04+)

sudo apt install docker.io

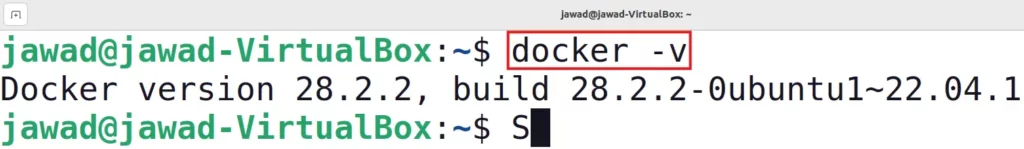

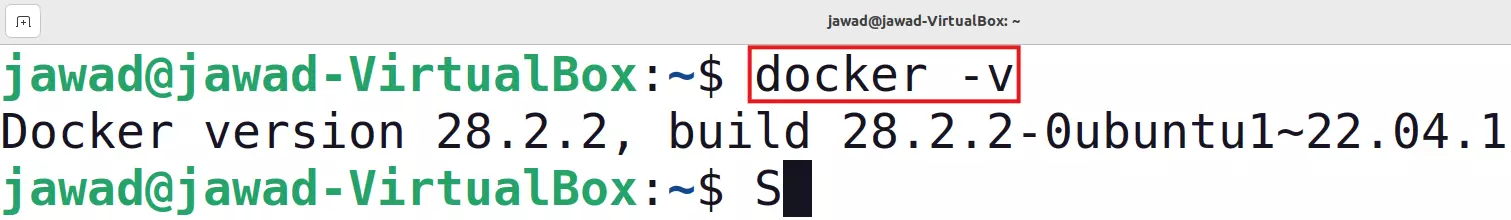

Verify Docker is available

docker -v

• CentOS

For CentOS installation of Docker, follow these commands.

• Update packages

yum update -y

• Install Docker

yum install docker -y

• Start Docker

systemctl start docker

• Check status (should show “active”)

systemctl status docker

Speed Test package Installation

1. Download the package (latest from Grandstream Tools, save to ~/Downloads)

# https://www.grandstream.com/support/tools  (download the tar.gz file)

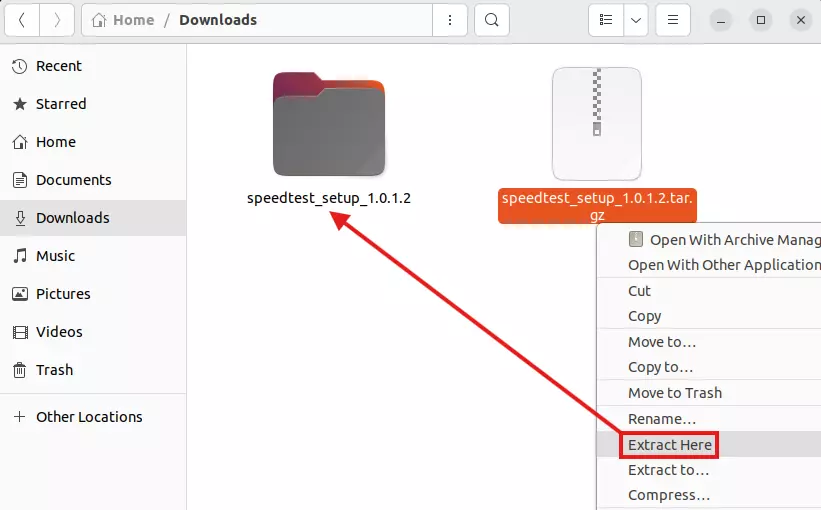

2. Extract the archive

cd ~/Downloads
tar -xzf speedtest_setup_1.0.1.2.tar.gz

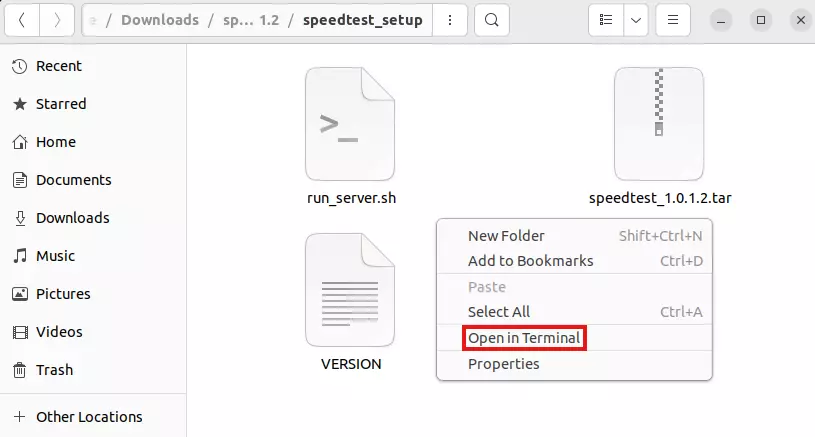

3. Open the setup folder

cd speedtest_setup_1.0.1.2/speedtest_setup

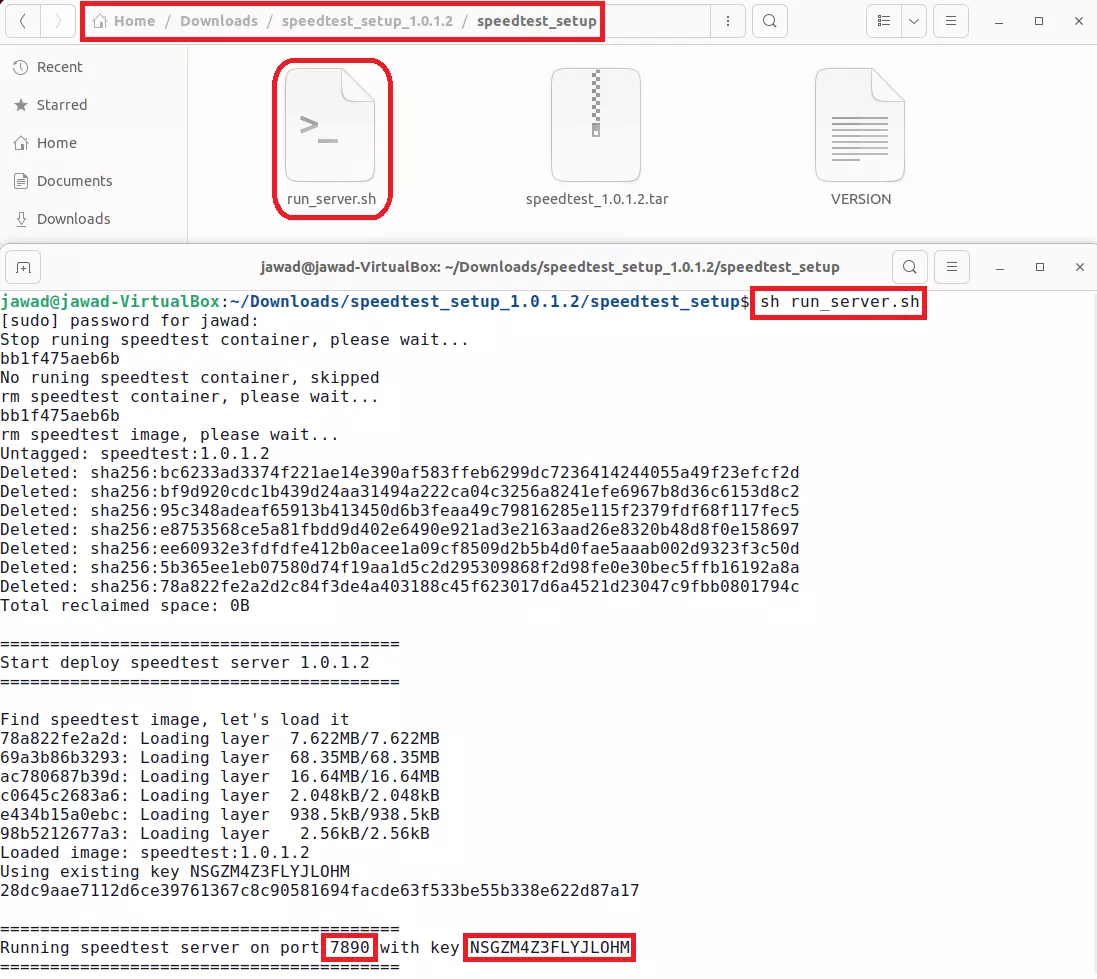

4. Run the setup script (deploy the server)

sh run_server.sh

5. Server URL (default port 7890)

# Replace with your host IP
http://192.168.6.92:7890

6. Secret key file (for adding the server in the platform)

sudo cat /data/conf/secret_key

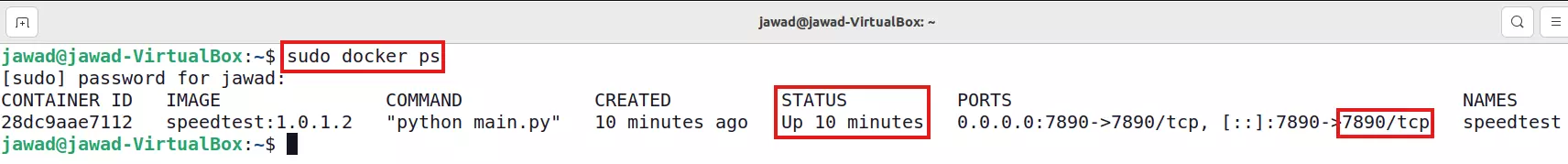

7. Verify the service status

sudo docker ps
# Expect: 0.0.0.0:7890->7890/tcp and container name "speedtest"

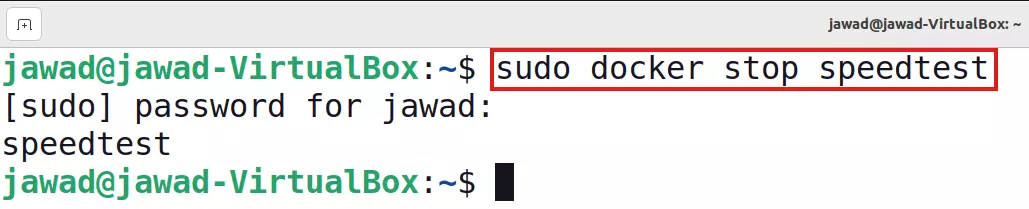

8. Stop the server (optional)

sudo docker stop speedtest

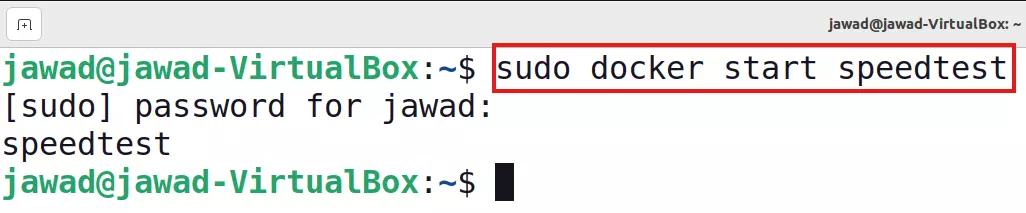

9. Start the server (optional)

sudo docker start speedtest

Management Platform Configuration

Follow these steps in GDMS Networking or GWN Manager to register your local server and run a test from a device.

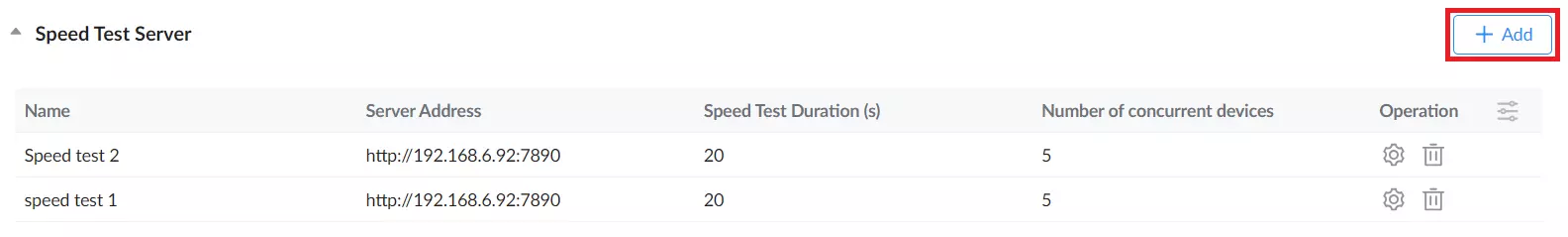

1) Open the Speed Test Server page

• Go to Organization → Global → Speed Test Server.
• Click Add.

2) Add your local server

Fill the dialog:

• Name: Speed test <#> (any label).
• Server Address: http://<server_ip>:7890
  Example: http://192.168.6.92:7890
• Secret Key: <secret_key> printed by run_server.sh (or read with sudo cat /data/conf/secret_key).
• Speed Test Duration (s): 10–30 (e.g., 20).
• Number of concurrent devices: 1–10 (e.g., 5).
  Click Add to save.

Tip: Use a static IP on the server so this entry stays valid. You can add multiple local servers and pick among them during testing.

3) Prepare a device for testing

• Ensure at least one GWN AP/router is adopted to GWN Manager or Added to GDMS Networking and online under Devices.
• If you need onboarding steps, see Getting Started with GDMS Platform.

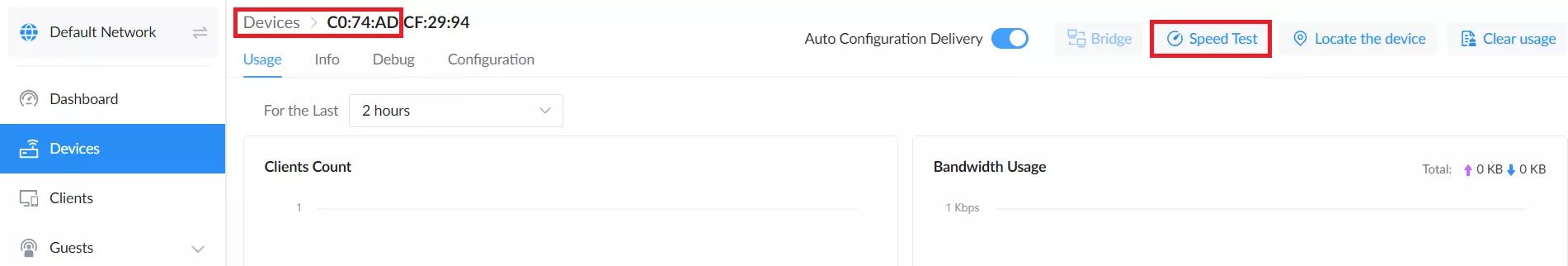

4) Start a speed test from the device page

• Open Devices → <device>.
• Click Speed Test.

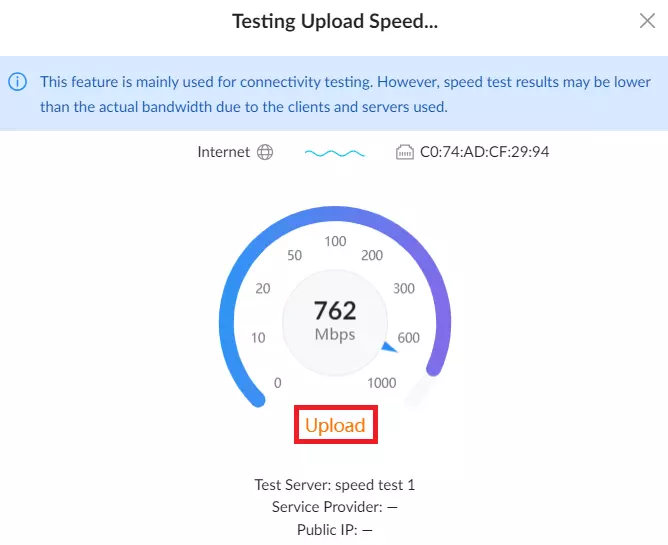

5) Observe the test phases

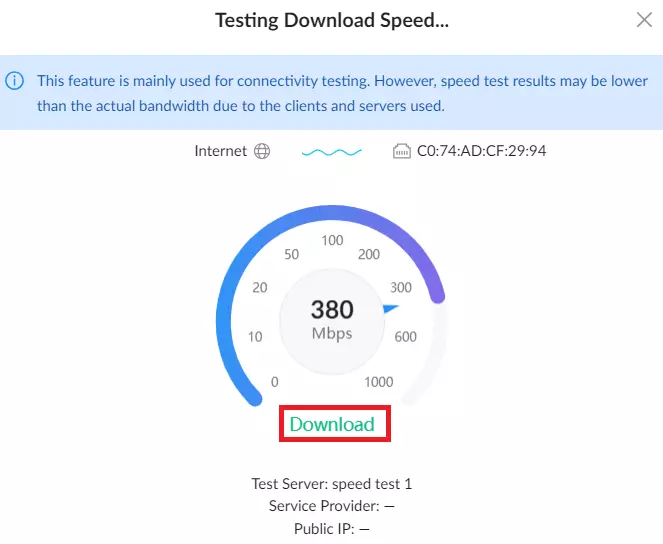

• The dialog runs Download first, then Upload against your local server.

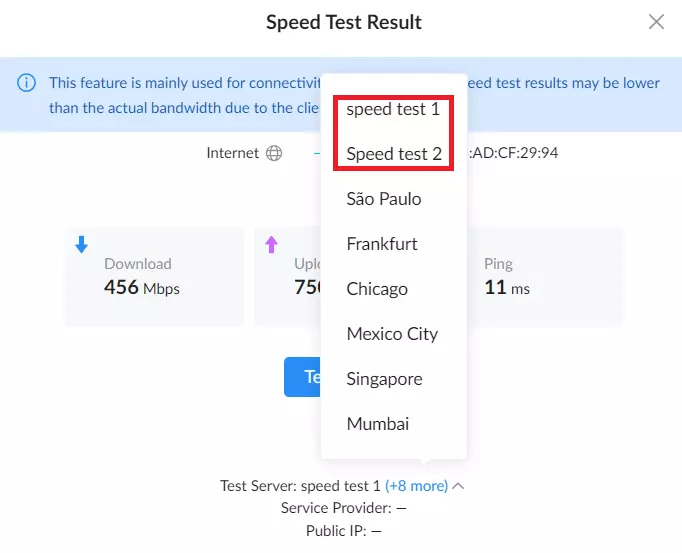

6) Review the results and retest with different server

• Final panel shows Download / Upload / Ping.
• Click Test Again to repeat. (optional)
• In the results dialog, open Test Server list and select another entry (e.g., speed test 1, speed test 2) to compare runs.
